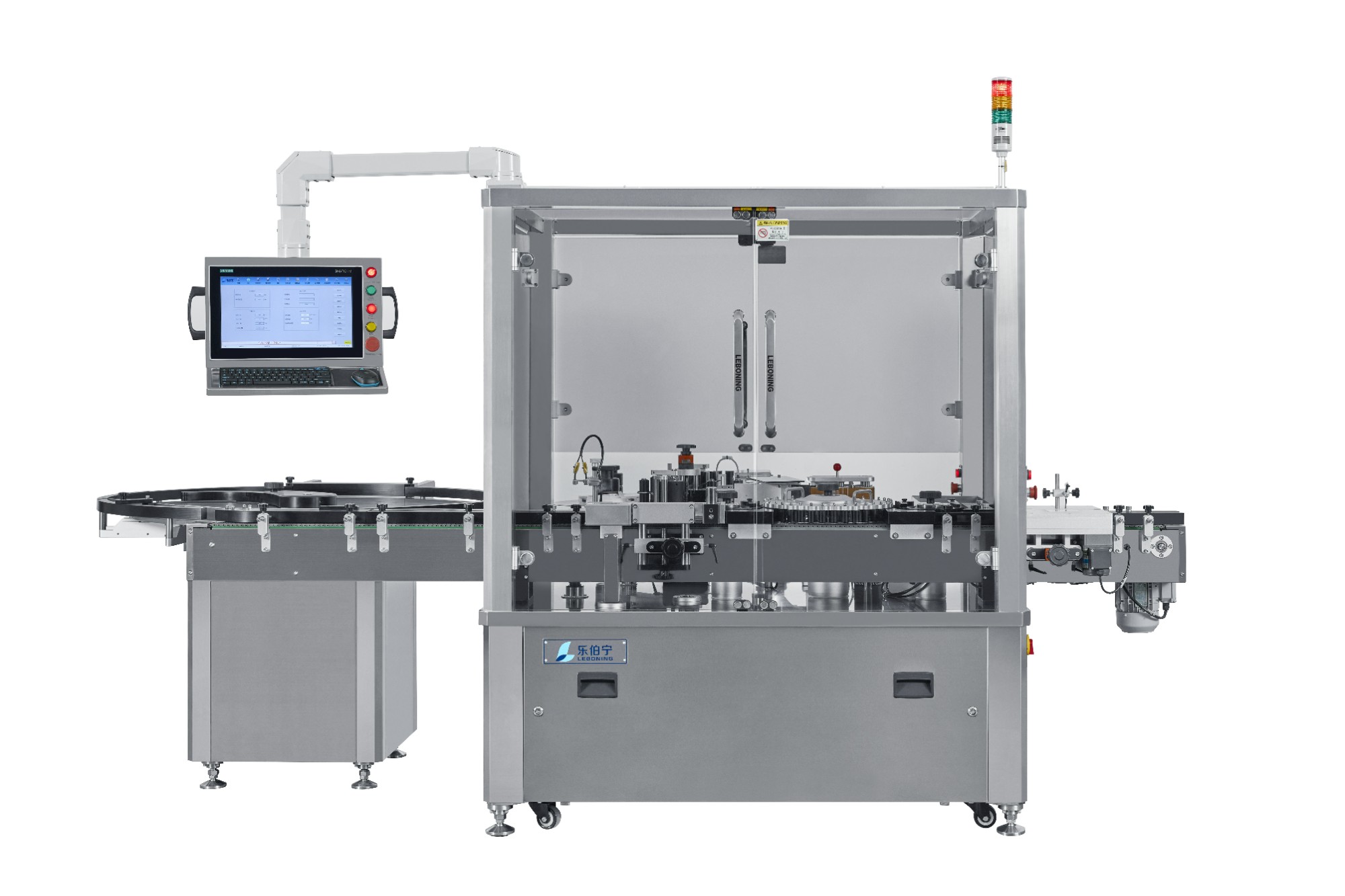

High Speed Rotary Labeling Machine For Vials
Model: Y-600
The machine is designed for high speed vial labeling request,wrap around labeling machine.
- Speed:up to 600pcs/min
- Application Bottle Dia:16-42.5mm
- Applicable Label Size:L:20-100mm,W:15-80mm
- Air Consumption:0.6Mpa,300l/Min
- Technical Parameter
- Electrical Parameter
- Application Samples
| Machine Parameters | |
| Applicable bottle diameter | 16-42.5mm |
| Applicable label material | Paper labels and transparent labels |
| Labeling speed | 0-600 bottles /min |
| Labeling accuracy | ±1mm ( except packaging material error ) |
| Product broken rate | ＜ 0.01 % |
| Label breakage rate | ＜ 0.1 % |
| Labeling pass rate | > 99.9% |
| Power supply | 5KW, AC220V, 50HZ |
| Air consumption | 0.6Mpa,300L /min |
| Machine dimension | 3508*1873*2109mm |
| Total weight (approximately) | Around 500Kg |
| Noise | ＜75dB ( one meter away from the equipment ) |
| Applicable inner diameter of the label roll | φ76mm |
| Maximum Label Roll Outer Diameter | Φ400mm |
| Self-adhesive label parameters | |
| Label spacing | 2-4 mm |
| Top/bottom margins on liner | 2 mm |
| Grammage | >62 g/m2 |
| Thickness | >55 μm |
| Tensile strength | Machine Direction : 16kg/25mm ,Cross direction: 7kg/25mm |
| Breaking strength | Machine Direction : 25g/sheet ,Cross direction: 31g/sheet |
| Transparency | 0.52 |
| Electronic control system | ||
| PLC | S7-200 smart | SIEMENS (Germany) |
| Power Supplier | LRS-100-24 ( DC24V/100W) | MEAN WELL (Taiwan) |
| Air switch | ic65N-c16A | Schneider (France) |
| Air switch | ic65N-c10A | Schneider (France) |
| Relay | MY2N- GS | OMRON (Japan) |
| Chassis unit | ||
| Main material | Stainless steel SUS304 | |
| Chassis dimension | 2005(L)×605(W)×672(H) mm | |
| Case structure material | Stainless steel square tube SUS304 | |
| Outer sealing material | Stainless steel SUS304 | |
| Conveyor mechanism | ||
| Main material | Stainless steel SUS304, aluminum A6061, plastic steel chain plate, POM | |
| Conveying motor and reducer |
T1A71B4
B14 0.37KW MU40 30/1 |
SITI (Italy) |
| Conveyor Motor Inverter | FC - 051 0.37 KW | Danfoss (Denmark) |
| Labeling host head | ||
| Main material | Stainless steel SUS304, Aluminum A6061, POM | |
| Label Feeding Motor | 4RK25GN-CT | TWT (Taiwan) |
| Label Feeding speed reducer | 4GN9K | TWT (Taiwan) |
| The bottom paper collecting motor | 4RK25GN-CT | TWT (Taiwan) |
| The bottom paper reducer | 4GN9K | TWT (Taiwan) |
| Label pulling servo motor | SGM7A-08AFA61 | YASKAWA (Japan) |
| Label pulling servo drive | SGD7S-5R5A00B202 | YASKAWA (Japan) |
| Label stock sensor | GTE6-N1211 | SICK (Germany) |
| Label feeding sensor | GL6-N1111 | SICK (Germany) |
| Label detection sensor | WF2-40B410 | SICK (Germany) |
| Wheel attached agency | ||
| Agency main material | Stainless steel SUS304, A6061 aluminum | |
| Wheel attached to the motor | 5IK60GN-YFT | TWT (Taiwan) |
| Wheel attached to the reducer | 5GN9K | TWT (Taiwan) |
| Work content photoelectric detection | FS-N18N | KEYENCE (Japan) |
| HMI | ||
| Main material | Stainless steel SUS304, aluminum A6061 | |
| Touch screen | PFXGP4402W | Proface (Japan) |
| Illuminated button ( green ) | NLB22-F10GA | NHD(Taiwan) |
| Illuminated button ( yellow ) | NLB22-F10GA | NHD(Taiwan) |
| Illuminated button ( red ) | NLB22-F10GA | NHD(Taiwan) |
| Emergency Button | XB2BS542C+ ZB2-BS54C | Schneider (France) |
| Rotary Switches | NLS22-S210RA | Schneider (France) |
High-Precision Labeling System for Vials
The design is optimized for easy maintenance and continuous, uninterrupted operation, minimizing downtime and enhancing productivity.It can be equipped with printing function to print lot number,manufacturer dates,expire dates on the labels,and can be inspected by the camera system,to detect whether the printing is correct.
Vial nfeed Mechanism

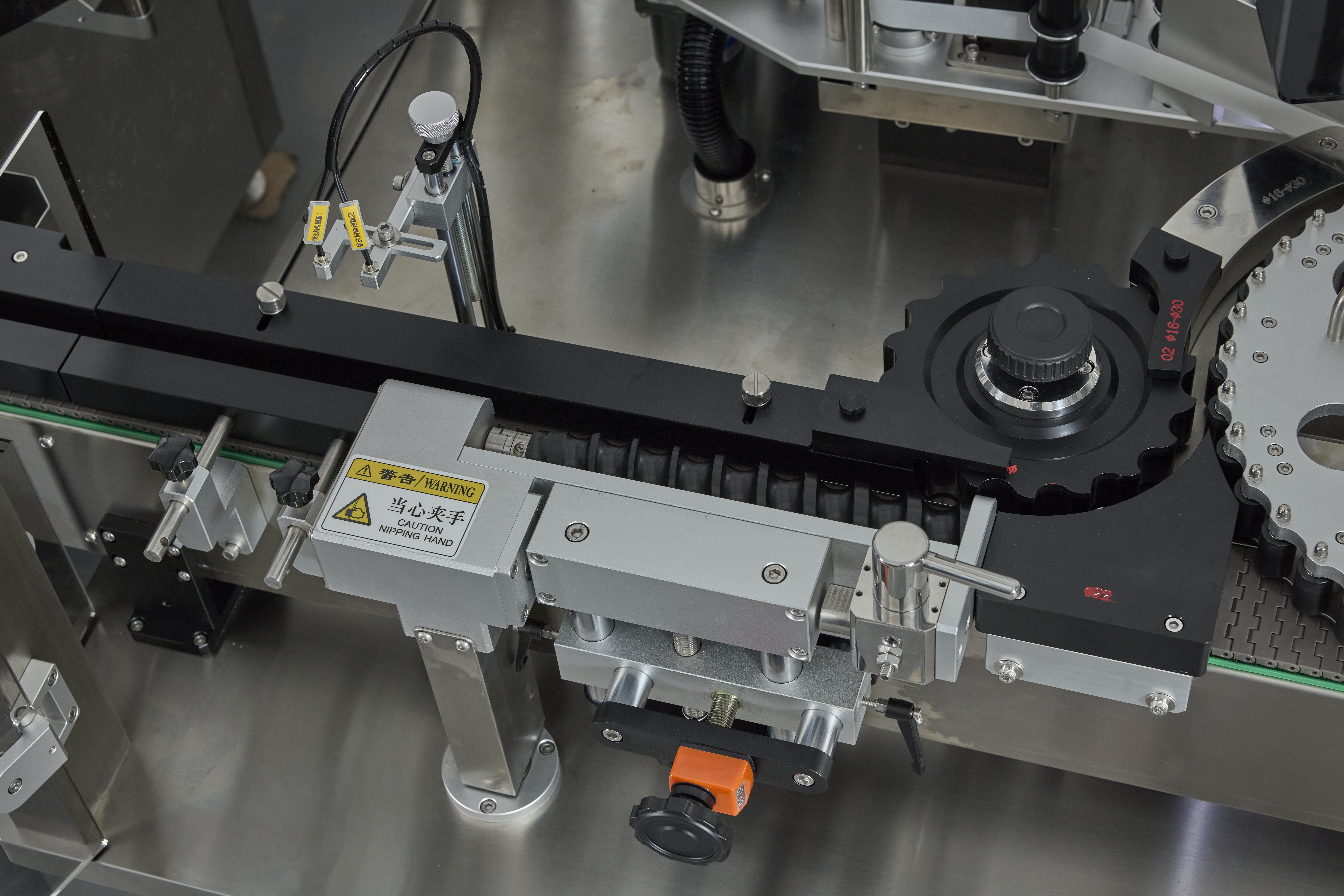

The feeding mechanism consists of several components,there will be rotary turntable to for feeding the vials to the infeed conveyor.The conveyor motor provides power to the conveyor line, an object photoelectric sensor triggers the labeling signal upon product detection, rollers position products between them, rotating as they approach the "wheel attachment unit," and an adjustment seat ensures proper tension on the conveyor belt.

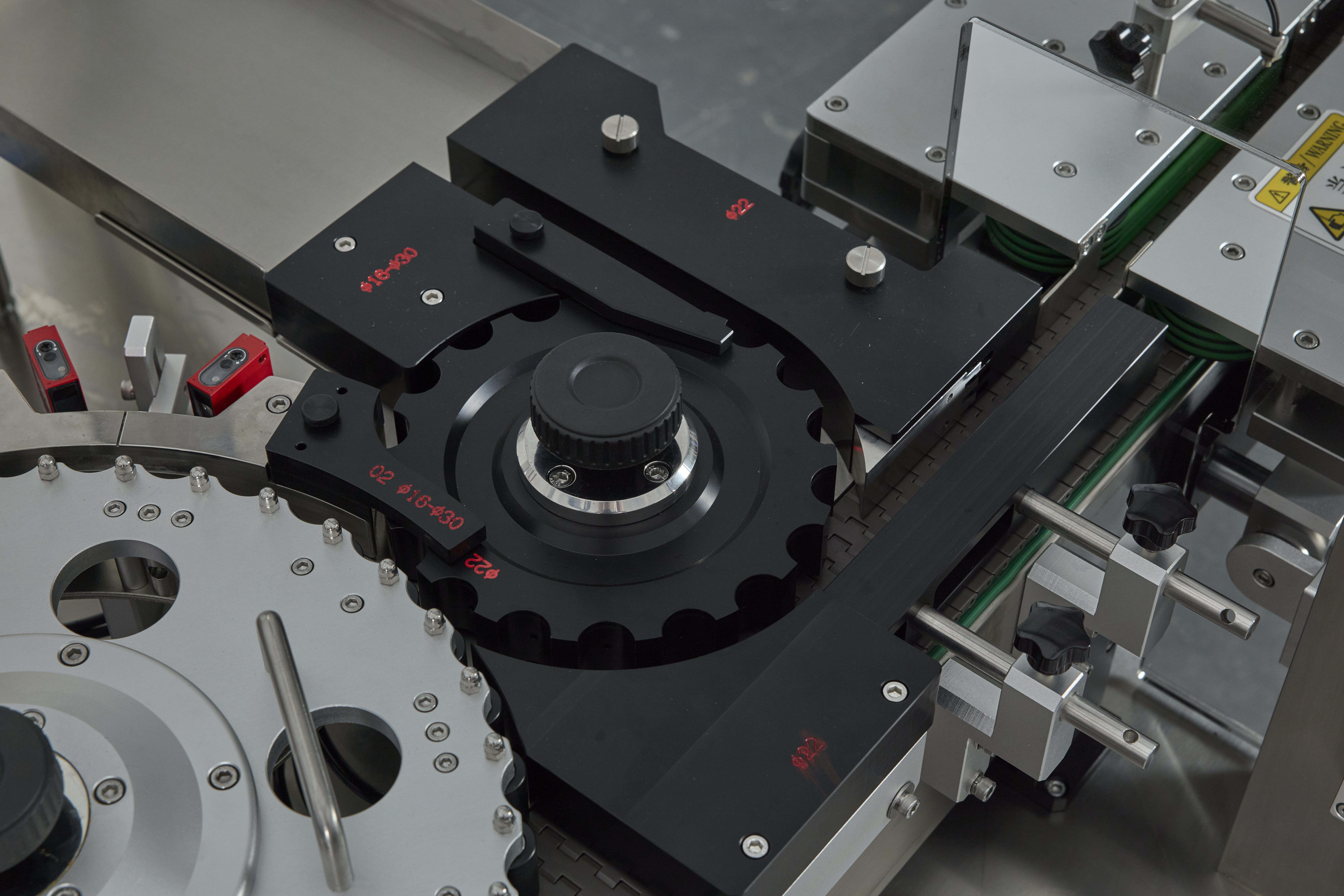

Rorary star wheel with anti-backlash technology for accuracy and stability.
The main drive of the star wheel device is gear drive. It adopts the gear anti-backlash technology to ensure the transmission accuracy, and also to ensure long-term stability and maintenance.
Related Products
Machine Features
China High Speed Rotary Vial Wrap Around Labeling Machine
The high-speed rotary labeling machine is suitable for vertical labeling of pharmaceutical vials. This versatile machine excels at precisely applying labels to cylindrical surfaces, making it ideal for pharmaceutical packaging and other industries requiring accurate and efficient labeling solutions. Its robust design and advanced features ensure reliable performance and consistent results, meeting the demanding requirements of modern production environments.
Capable of labeling up to 600 bottles per minute for vials with a diameter of up to Φ42.5 mm, surpassing similar industry equipments.
The spoke-wheel belt adopts the synchronous belt wrap sponge, which is running smooth with good buffering performance, It can make the label attachment firmer and reduce the risk to break the bottle.
Ensures precise positioning and smooth conveying.
Provides smooth and steady feeding with ample buffering space.
Ensures even bottle separation and smooth entry into the star wheel mechanism without bottle breakage.
